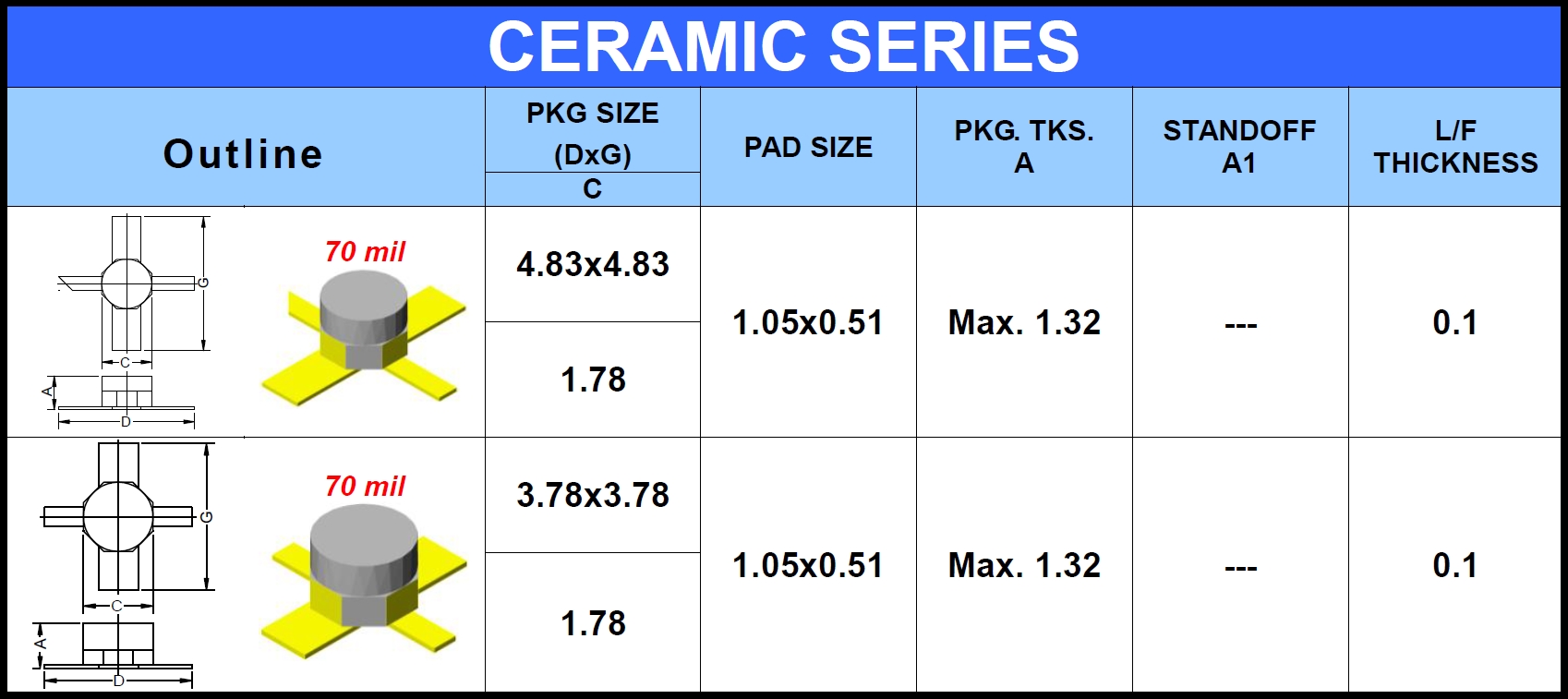

| CERAMIC SERIES Unit: mm | |||||||
|---|---|---|---|---|---|---|---|
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||

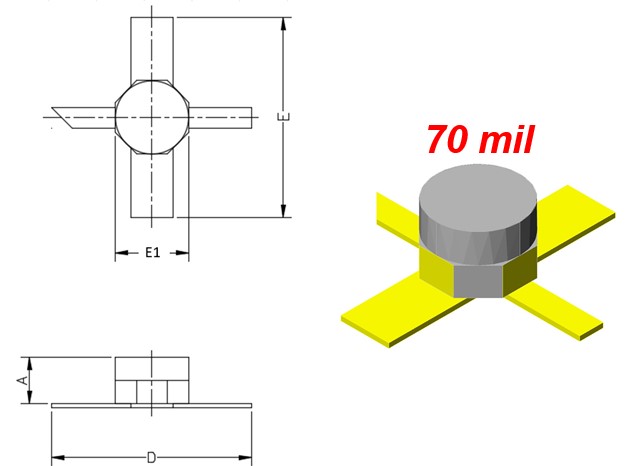

 | 4.83x4.83 | 1.78 | 1.05x0.51 | 1.32 | -- | -- | 0.1 |

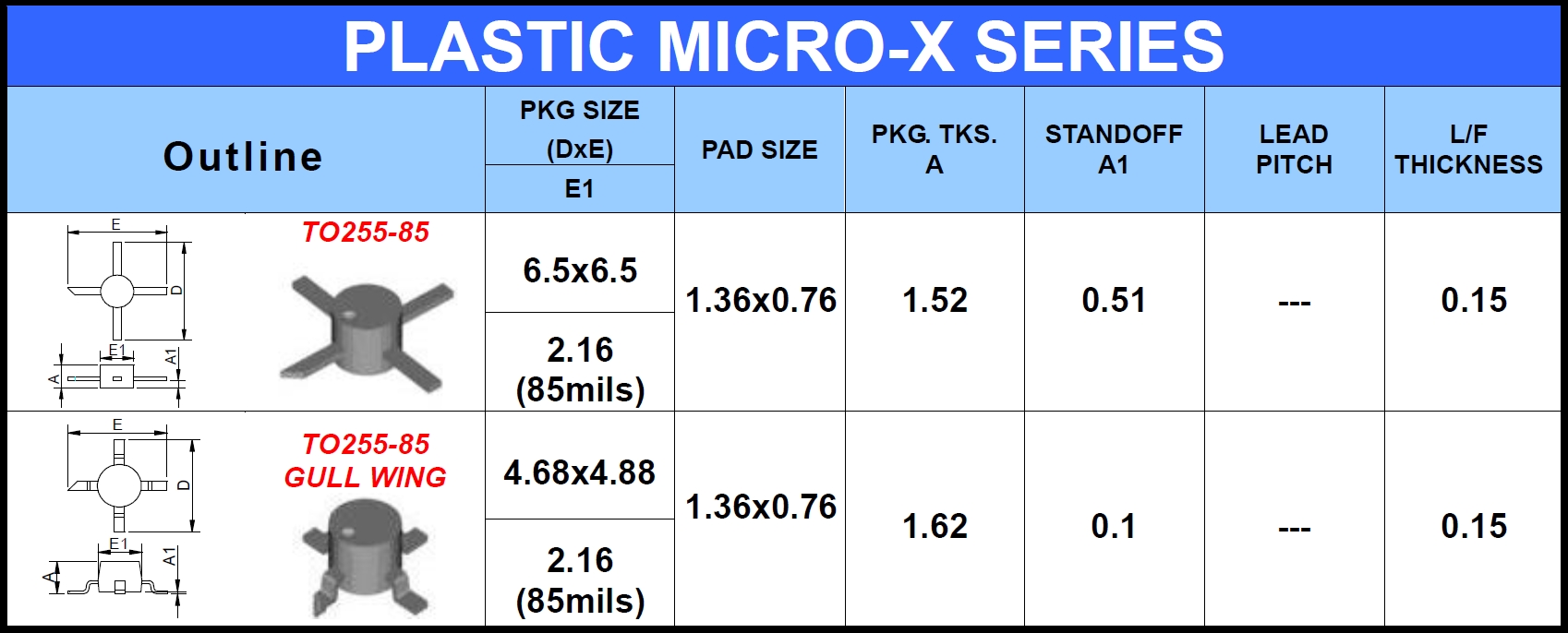

| PLASTIC MICRO-X SERIES Unit: mm | |||||||
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||
 | 4.68x4.88 | 2.16 (85mils) | 1.36x0.76 | 1.62 | 0.1 | -- | 0.15 |

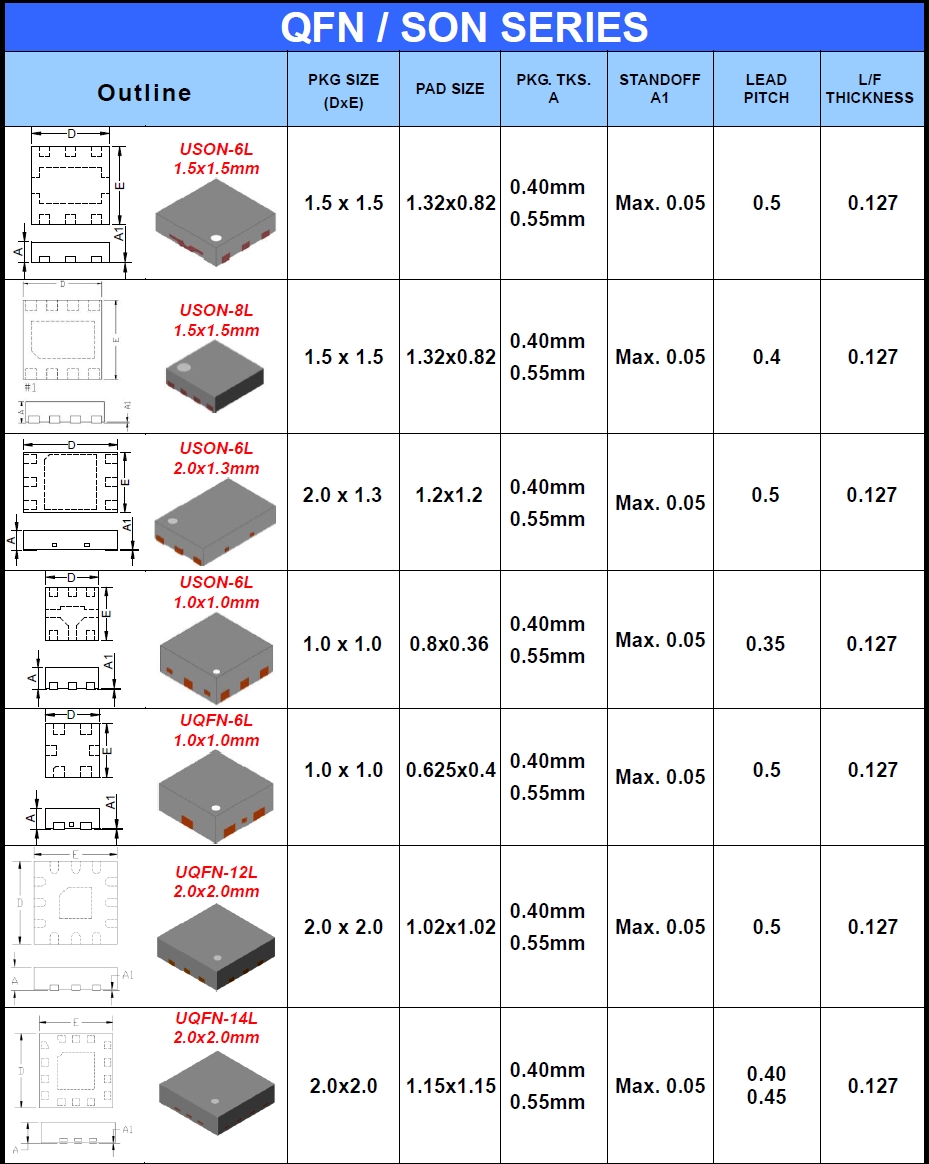

| QFN SERIES Unit: mm | |||||||
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||

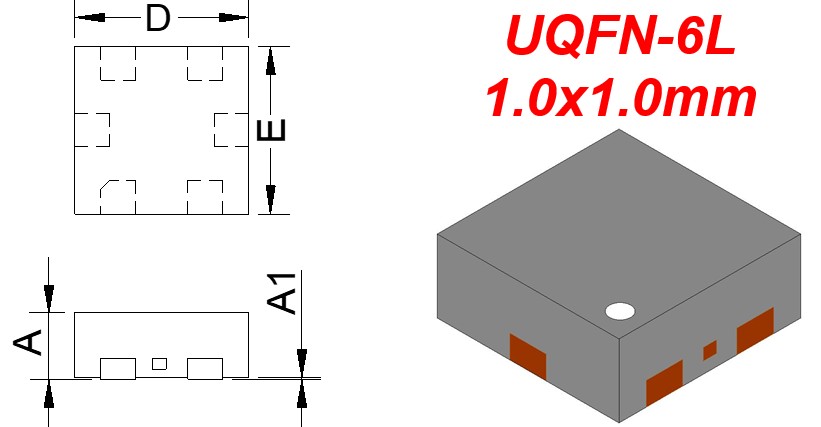

 | 1.0x1.0 | -- | 0.625x0.4 | 0.4 / 0.55 | Max. 0.05 | 0.5 | 0.127 |

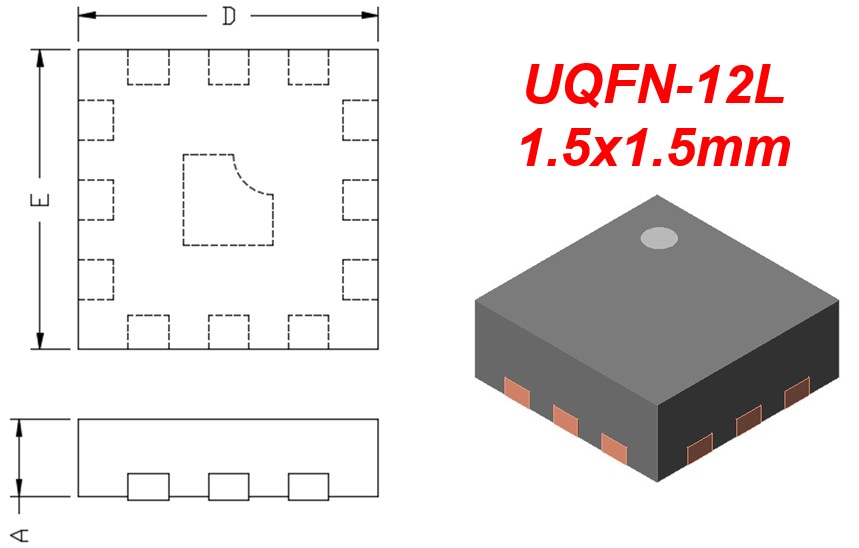

 | 1.5x1.5 | -- | 0.85x0.85 | 0.4 / 0.55 | Max. 0.05 | 0.4 | 0.127 |
 | 2.0x2.0 | -- | 1.15x1.15 | 0.4 / 0.55 | Max. 0.05 | 0.5 | 0.127 |
 | 2.0x2.0 | -- | 1.15x1.15 | 0.4 / 0.55 | Max. 0.05 | 0.4 / 0.45 | 0.127 |

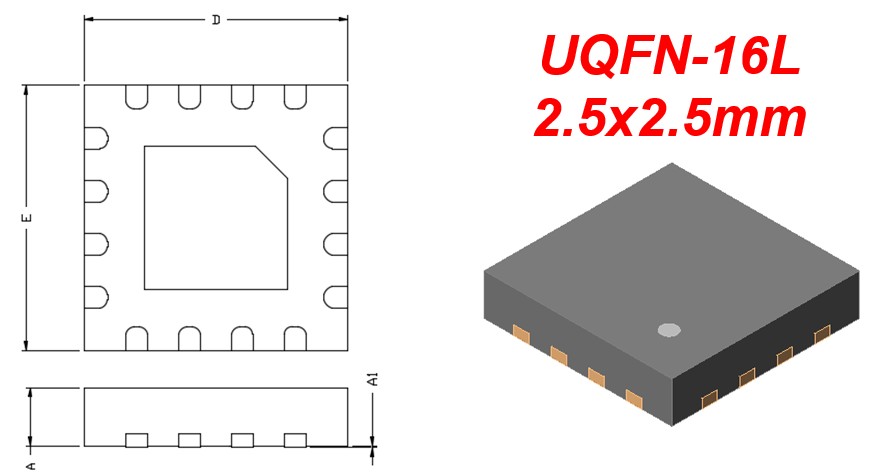

 | 2.5x2.5 | -- | 1.8x1.8 | 0.4 / 0.55 | Max. 0.05 | 0.5 | 0.127 |

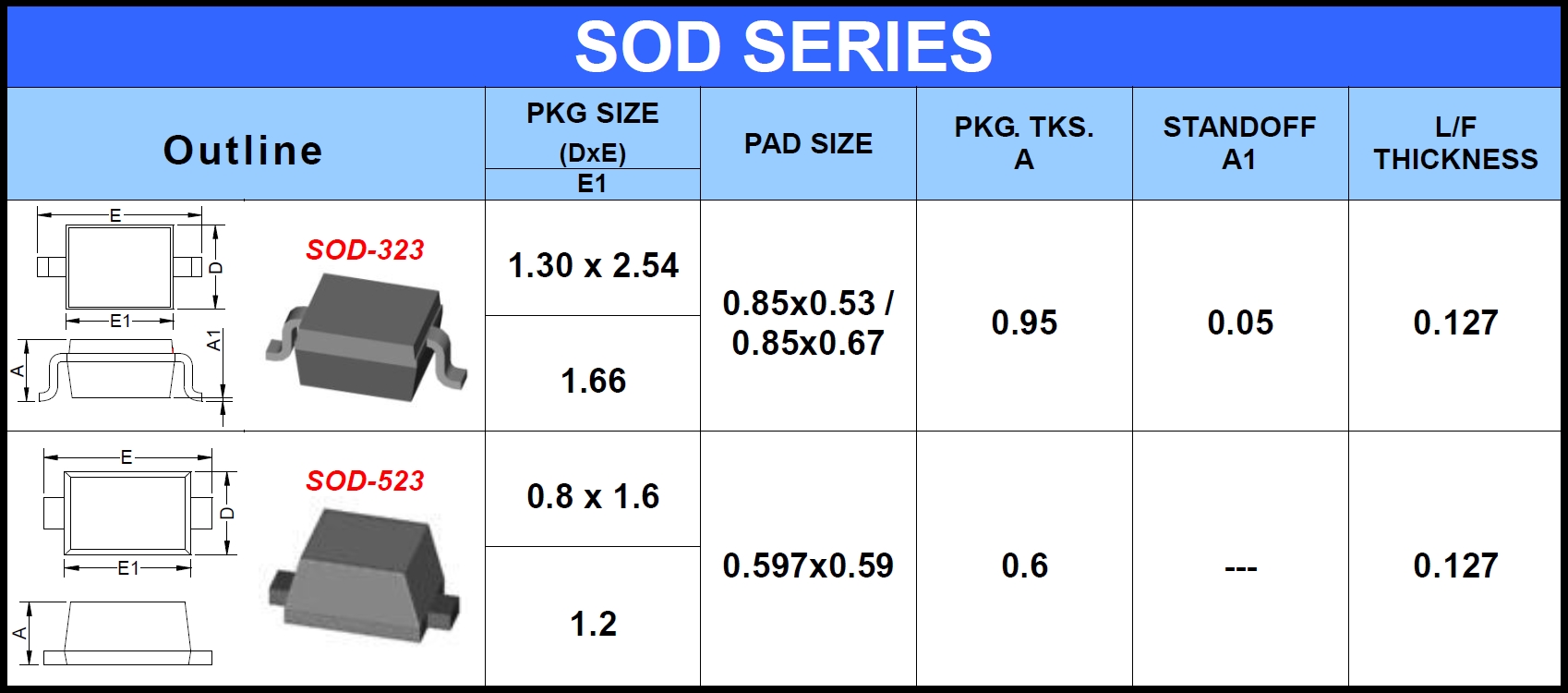

| SOD SERIES Unit: mm | |||||||
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||
 | 0.8x1.6 | 1.2 | 0.597x0.59 | 0.6 | -- | -- | 0.127 |

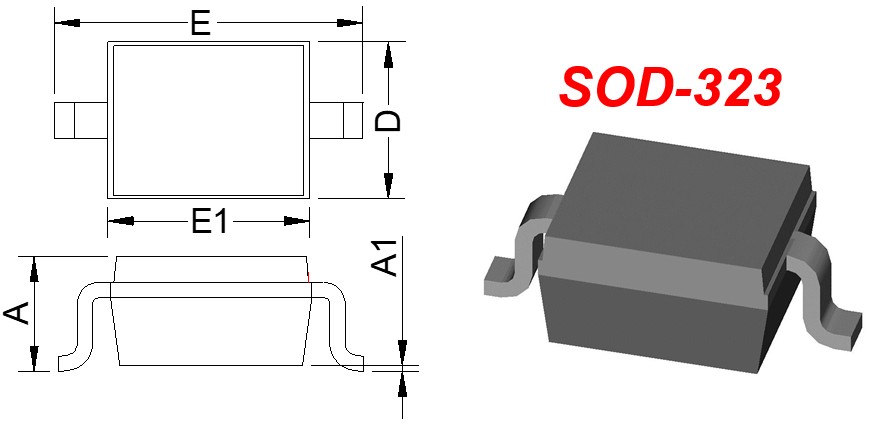

 | 1.30x2.54 | 1.66 | 0.85x0.53 / 0.85x0.67 | 0.9 | 0.1 | -- | 0.127 |
| SON SERIES Unit: mm | |||||||
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||

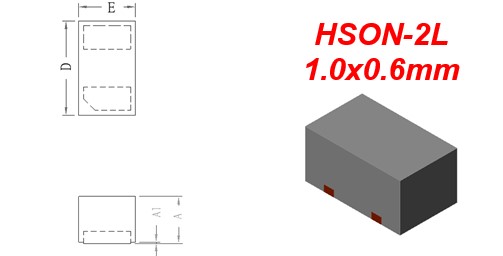

 | 1.0x0.6 | -- | 0.5x0.4 | 0.5 | Max. 0.05 | 0.65 | 0.127 |
 | 1.0x0.6 | -- | 0.48x0.54 | 0.5 | Max. 0.05 | 0.34 | 0.127 |

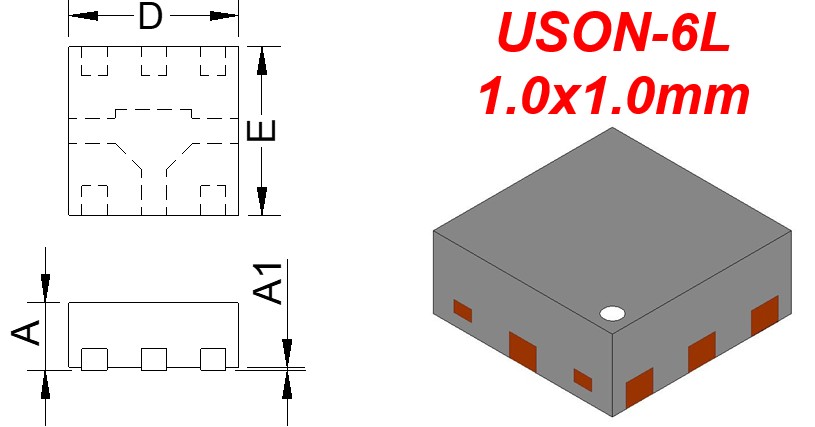

 | 1.0x1.0 | -- | 0.8x0.36 | 0.4 / 0.55 | Max. 0.05 | 0.35 | 0.127 |

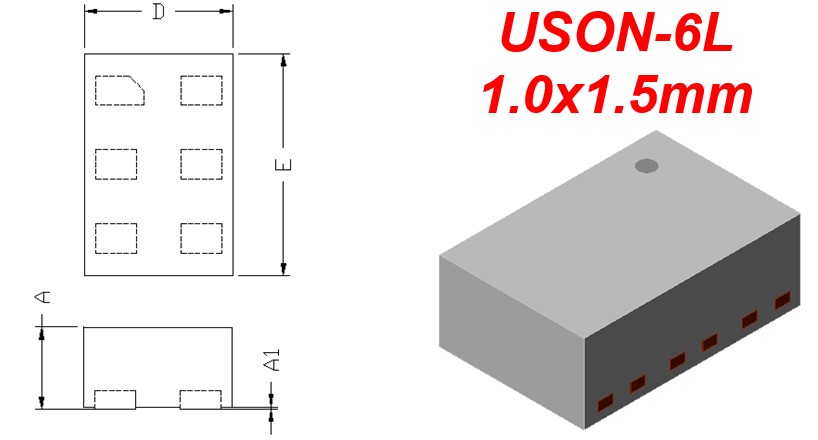

 | 1.0x1.5 | -- | 0.42x0.82 | 0.4 / 0.55 | Max. 0.05 | 0.5 | 0.127 |

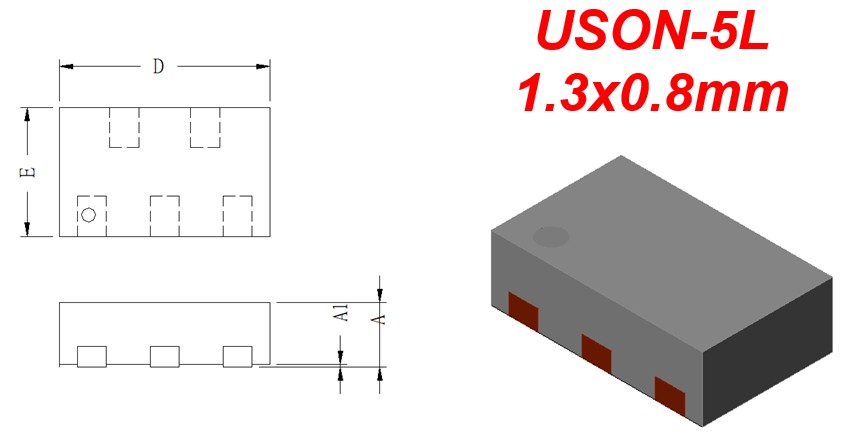

 | 1.3x0.8 | -- | 0.52x0.37 | 0.4 | Max. 0.05 | 0.45 / 0.5 | 0.127 |
 | 1.5x1.5 | -- | 1.32x0.82 | 0.4/ 0.55 | Max. 0.05 | 0.5 | 0.127 |
 | 1.5x1.5 | -- | 1.32x0.82 | 0.4 / 0.55 | Max. 0.05 | 0.4 | 0.127 |

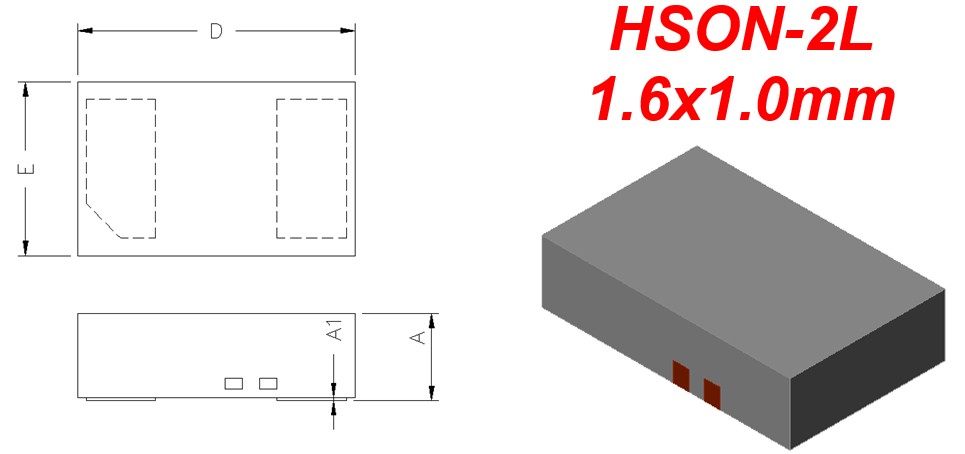

 | 1.6x1.0 | -- | 1.32x0.82 | 0.5 | Max. 0.05 | 1.1 | 0.127 |

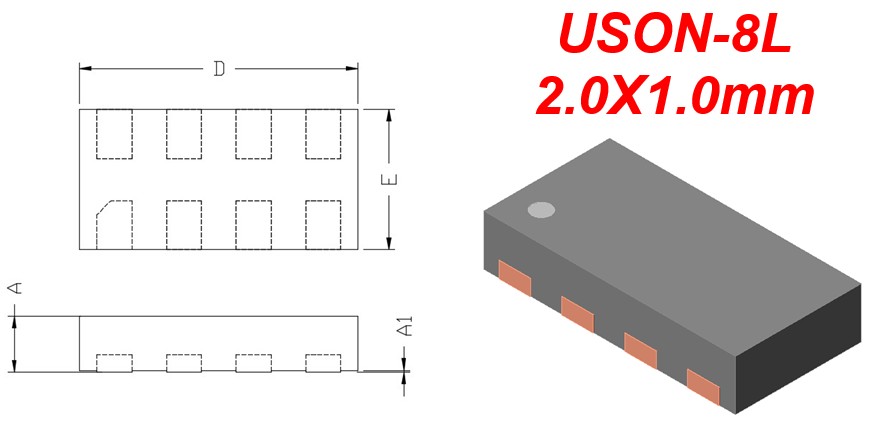

 | 2.0x1.0 | -- | 0.45x1.1 | 0.5 | Max. 0.05 | 0.8 | 0.127 |

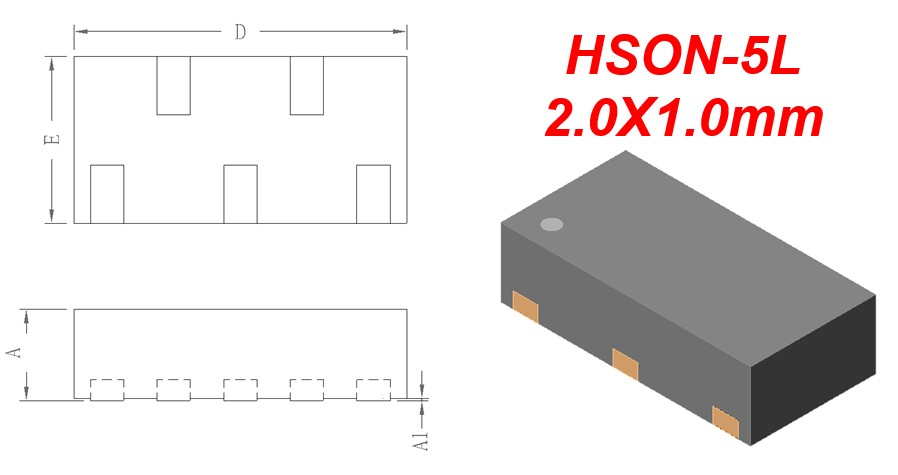

 | 2.0x1.0 | -- | 0.45x0.8 | 0.4 | Max. 0.05 | 0.5 | 0.127 |

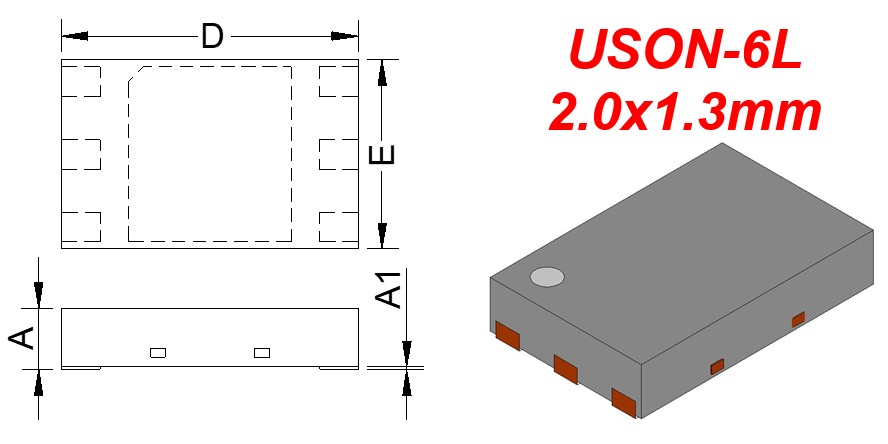

 | 2.0x1.3 | -- | 1.2x1.2 | 0.4 / 0.55 | Max. 0.05 | 0.5 | 0.127 |

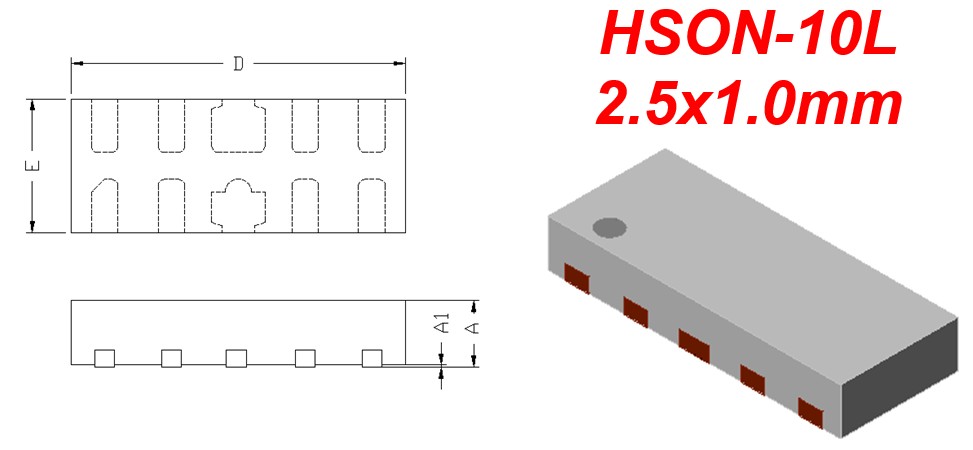

 | 2.5x1.0 | -- | 0.82x0.46 | 0.5 | Max. 0.05 | 0.5 | 0.127 |

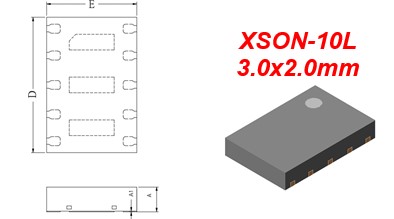

 | 3.0x2.0 | -- | 2.8x1.1 | 0.55 | Max. 0.05 | 0.6 / 0.65 | 0.127 |
 | 3.0x3.0 | -- | 1.8x1.8 | 0.55 | Max. 0.05 | 0.5 | 0.127 |

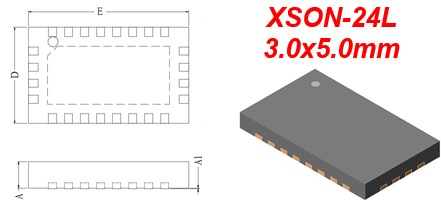

 | 3.0x5.0 | -- | 2.0x4.0 | 0.55 | Max. 0.05 | 0.5 | 0.127 |
 | 5.5x1.5 | -- | 1.02x1.02 | 0.55 | Max. 0.05 | 0.5 / 0.75 | 0.127 |

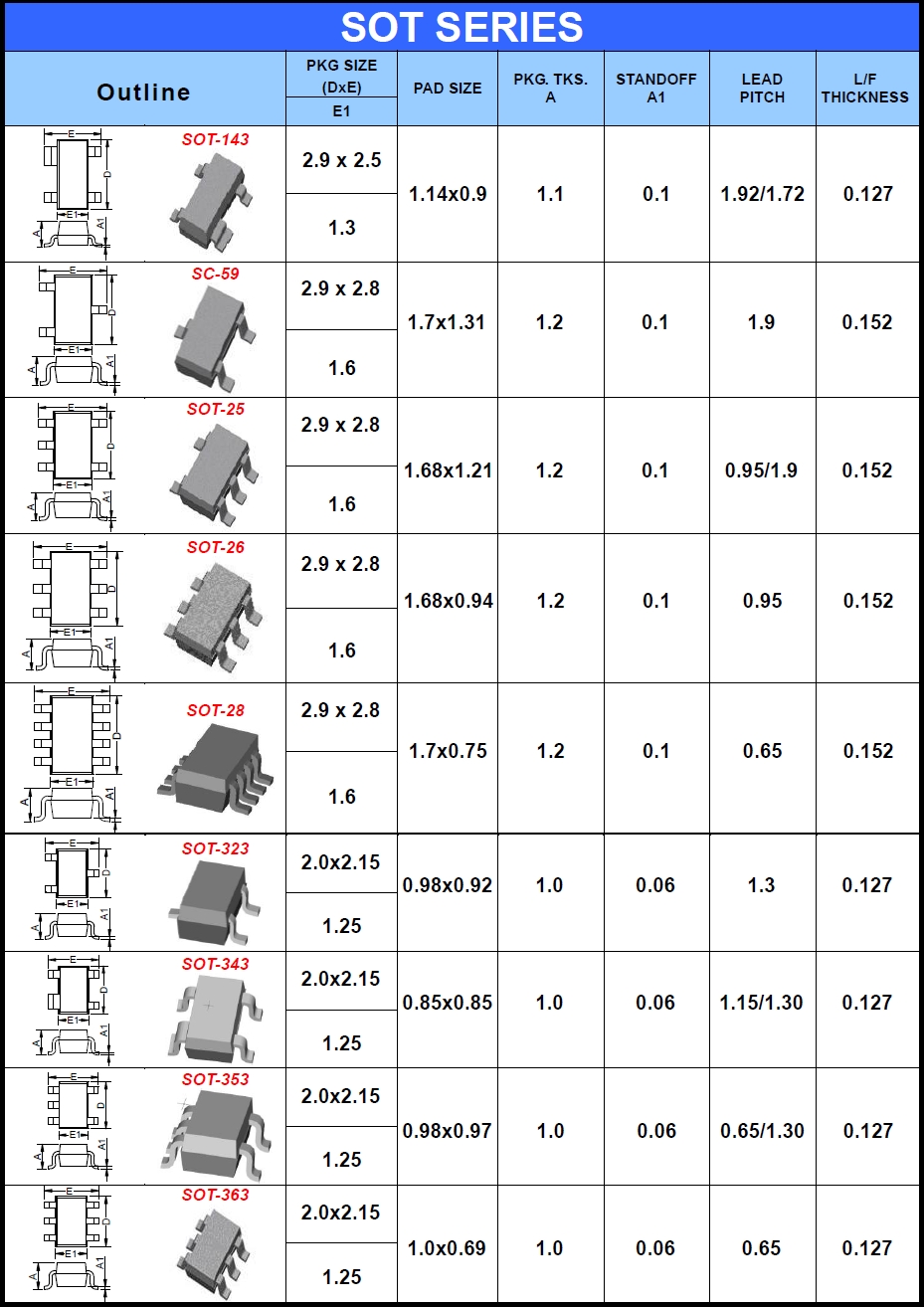

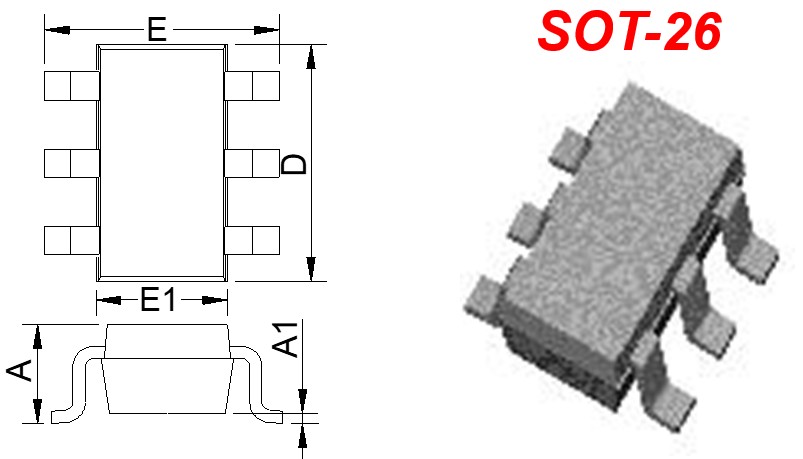

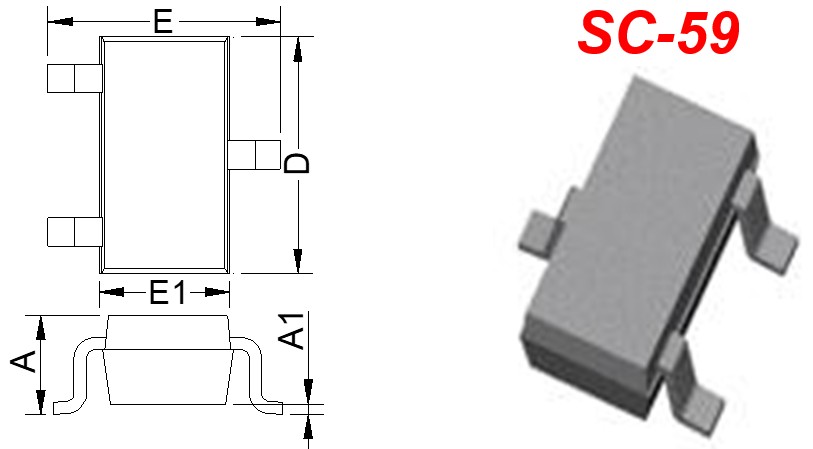

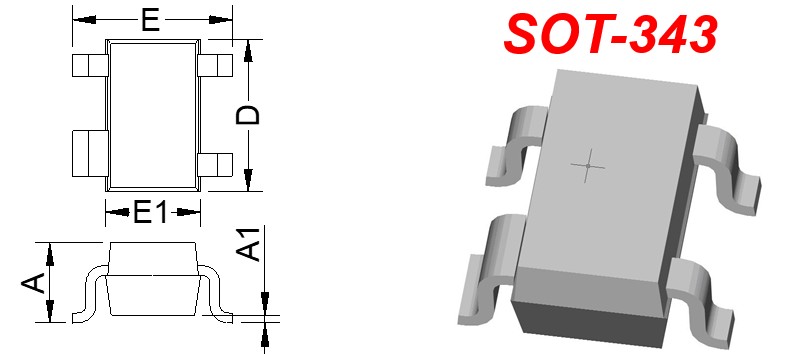

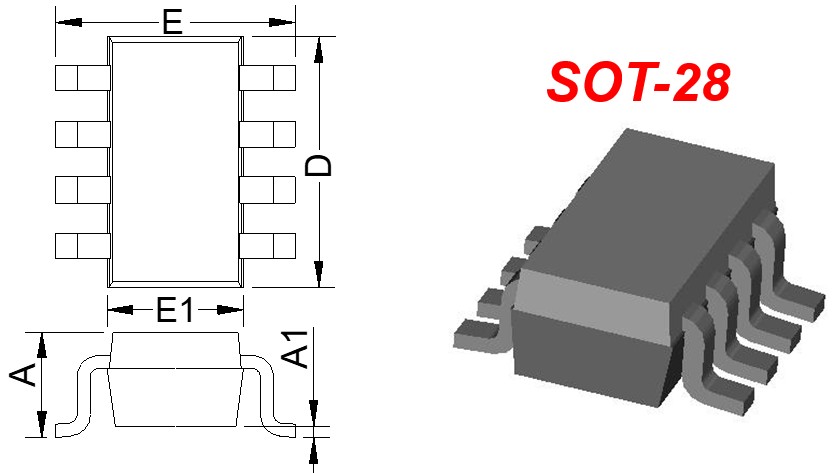

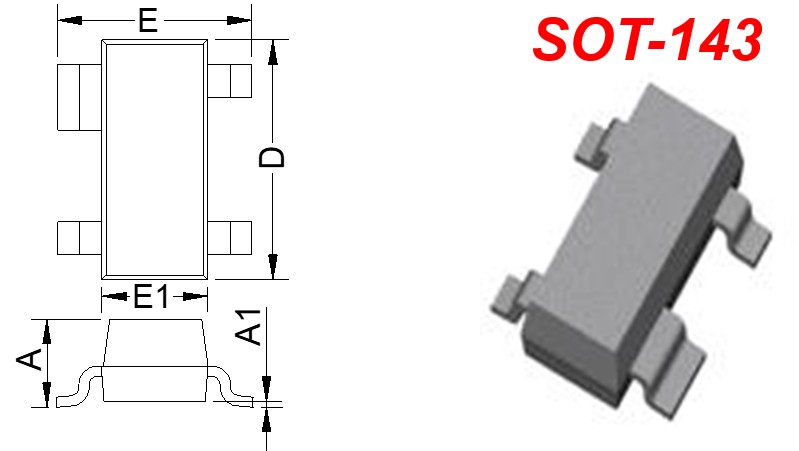

| SOT SERIES Unit: mm | |||||||
| Outline | PKG SIZE | PAD SIZE | PKG. TKS. A | STANDOFF A1 | LEAD PITCH | L/F THICKNESS | |
| (DxE) | E1 | ||||||
 | 2.0x2.0 | 1.5 | 0.6x0.7 | 0.6 | -- | 1.3 | 0.127 |
 | 2.0x2.15 | 1.25 | 0.98x0.92 | 1.1 | 0.1 | 1.3 | 0.127 |
 | 2.0x2.15 | 1.25 | 0.85x0.85 | 1.1 | 0.1 | 1.15 / 1.3 | 0.127 |

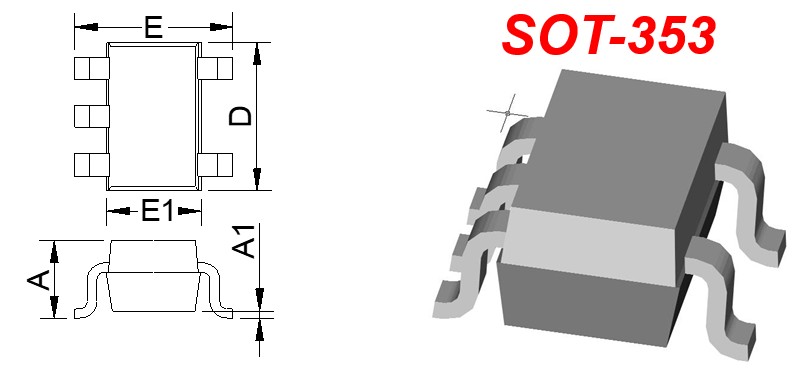

 | 2.0x2.15 | 1.25 | 0.98x0.97 | 1.1 | 0.1 | 0.65 / 1.3 | 0.127 |

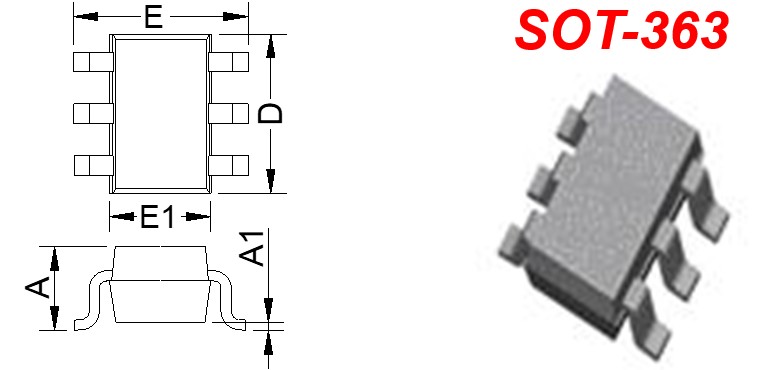

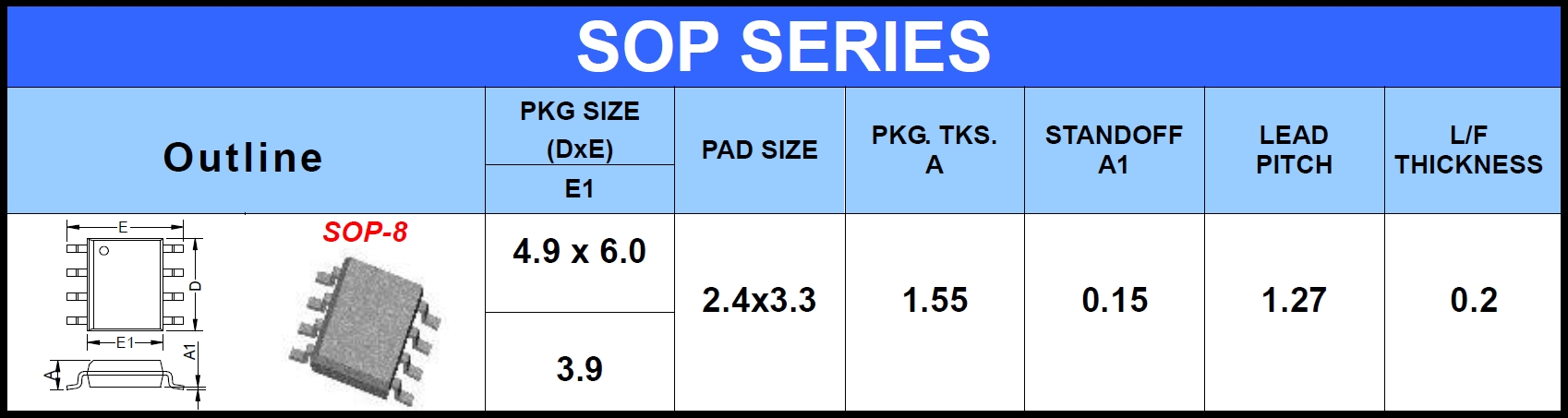

 | 2.0x2.15 | 1.25 | 1.0x0.69 | 1.1 | 0.1 | 0.65 | 0.127 |
 | 2.9x2.5 | 1.3 | 1.14x0.9 | 1.22 | 0.1 | 1.92/1.72 | 0.127 |
 | 2.9x2.8 | 1.6 | 1.7x1.21 | 1.45 | 0.1 | 1.9 | 0.152 |
 | 2.9x2.8 | 1.6 | 1.68x1.21 | 1.45 | 0.1 | 0.95 / 1.9 | 0.152 |
 | 2.9x2.8 | 1.6 | 1.68x0.94 | 1.45 | 0.1 | 0.95 | 0.152 |
 | 2.9x2.8 | 1.6 | 1.7x0.75 | 1.45 | 0.1 | 0.65 | 0.152 |
